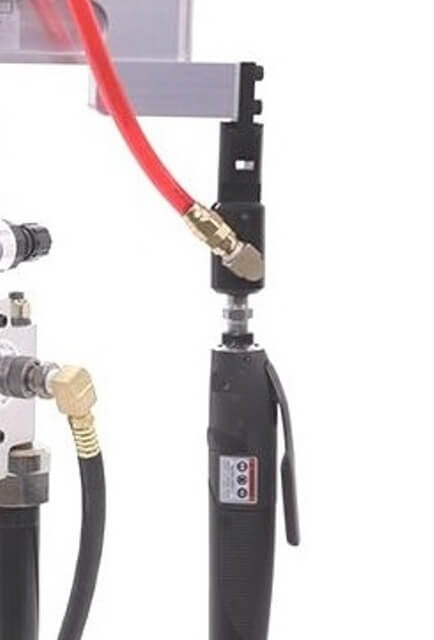

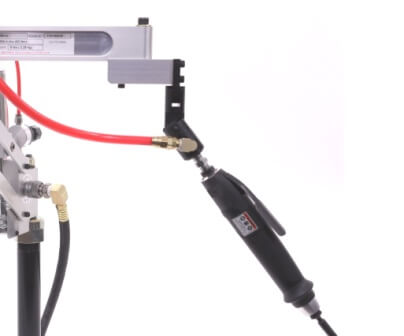

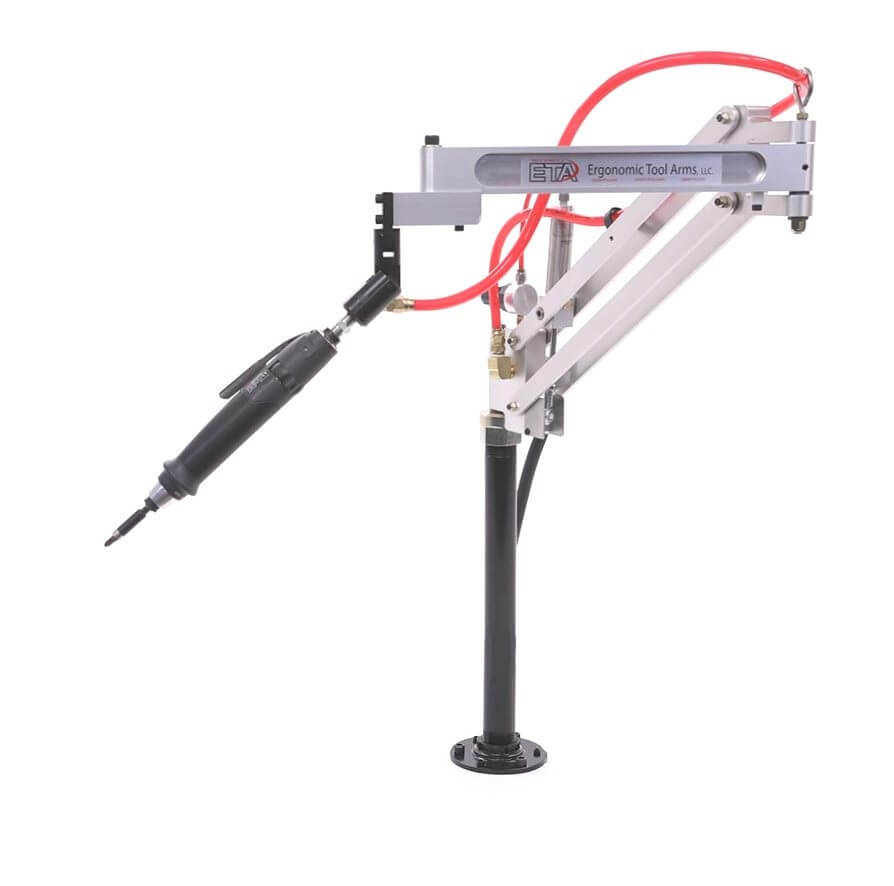

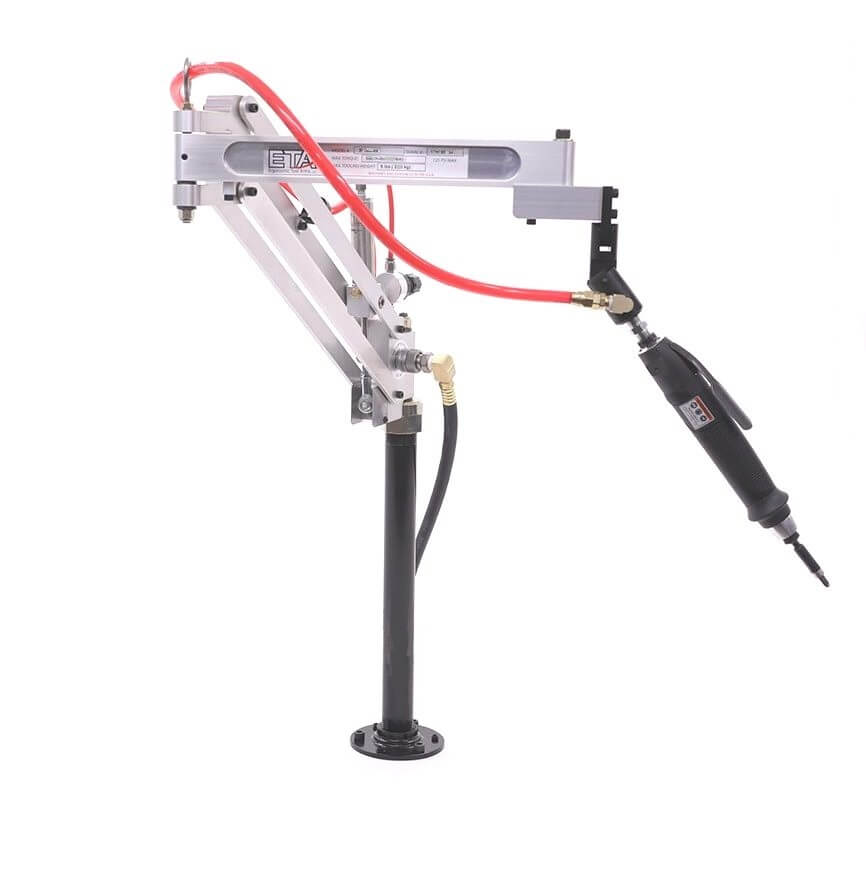

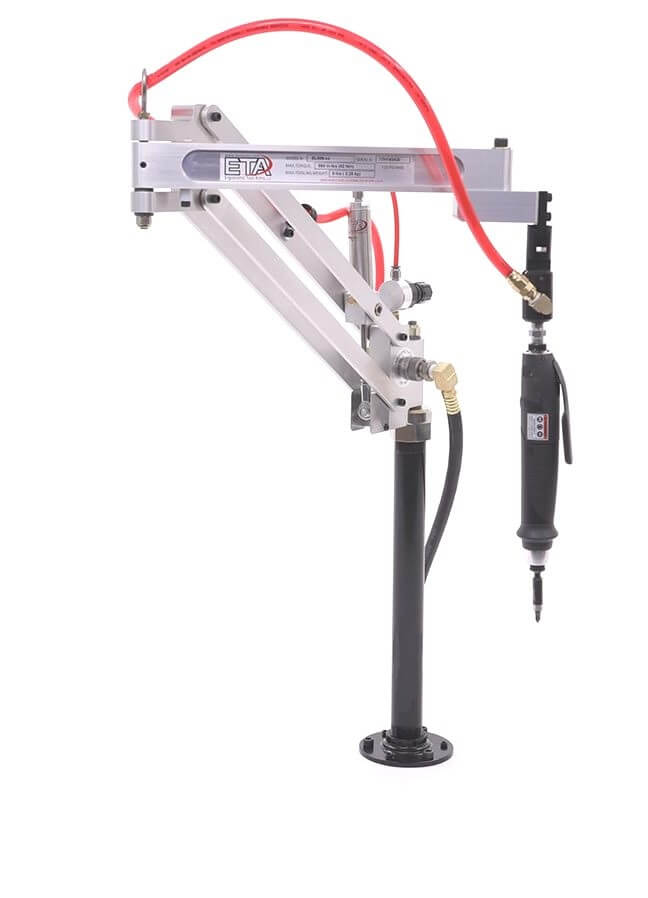

The arm below includes our SW-TH (SWivel-Tool Holder) for fastening with Inline Air Tools mounted by the tool’s air inlet, so operator can drive screws at any angle, true vertical and off of vertical without torque reaction. SW-TH swivel is free moving and will not lock in any angle position.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
PA506-SW is also available for mounting from overhead. Simply add -OM to the end of the model number ( PA506-SW-OM).
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|
| PA506-SW | Standard Duty Arm for Fastening with customer's In-line air tool at varying angles from VERTICAL - 1/4 Male NPT Connection - 5/16" ID Tool Supply Hose | Download Specs | 180 (20) | N/A | 6 (2.7) | 36" (915) | 18 inch (B125-18) | SW-TH |
