If your application requires you to drive vertical fasteners and horizontal fasteners in the same work zone and the same Inline or Pistol air tool can do both, then the arm on this page can be an excellent ergonomic improvement. We designed this IPHV holder to be versatile and quick to change from vertical to horizontal. The arm is for air powered, Inline or Pistol Tools only. It will not work with Right Angle tools.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
The arm on this page is also available as an Overhead Mount model. Just add -OM to the end of any model number. For example PA815-IPHV-OM.
MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
---|---|---|---|---|---|---|---|---|

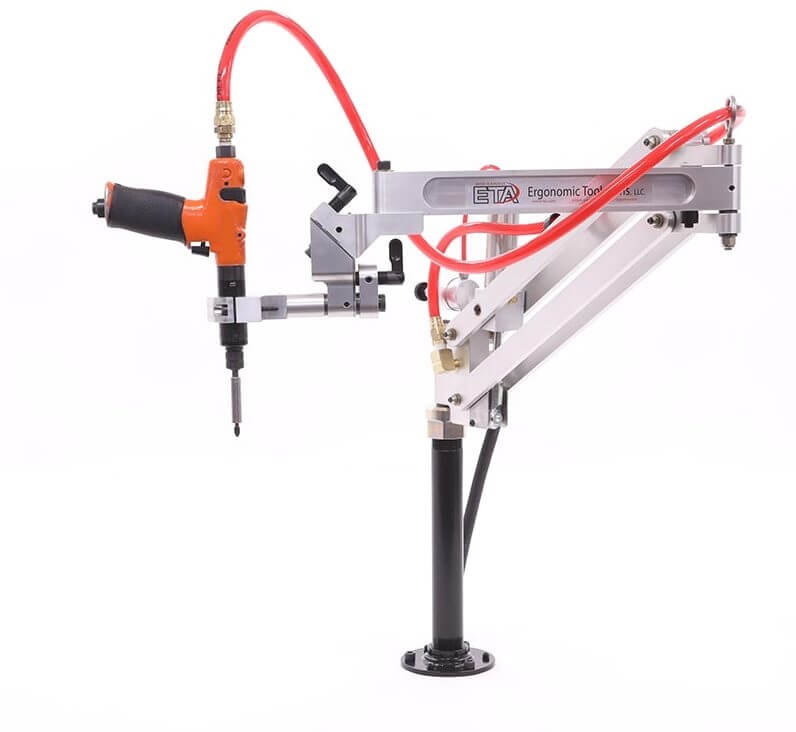

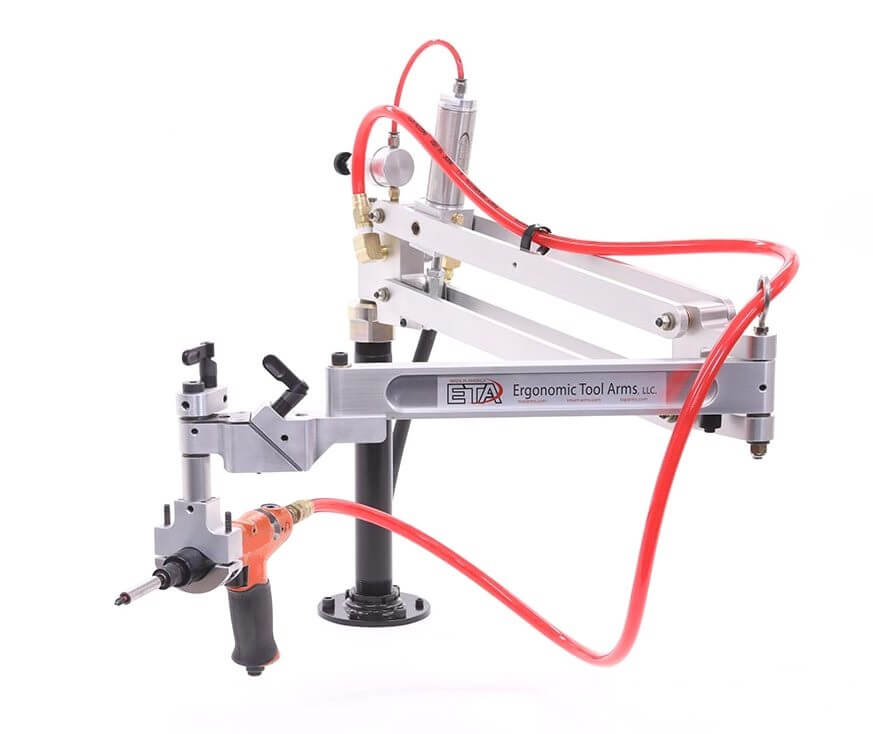

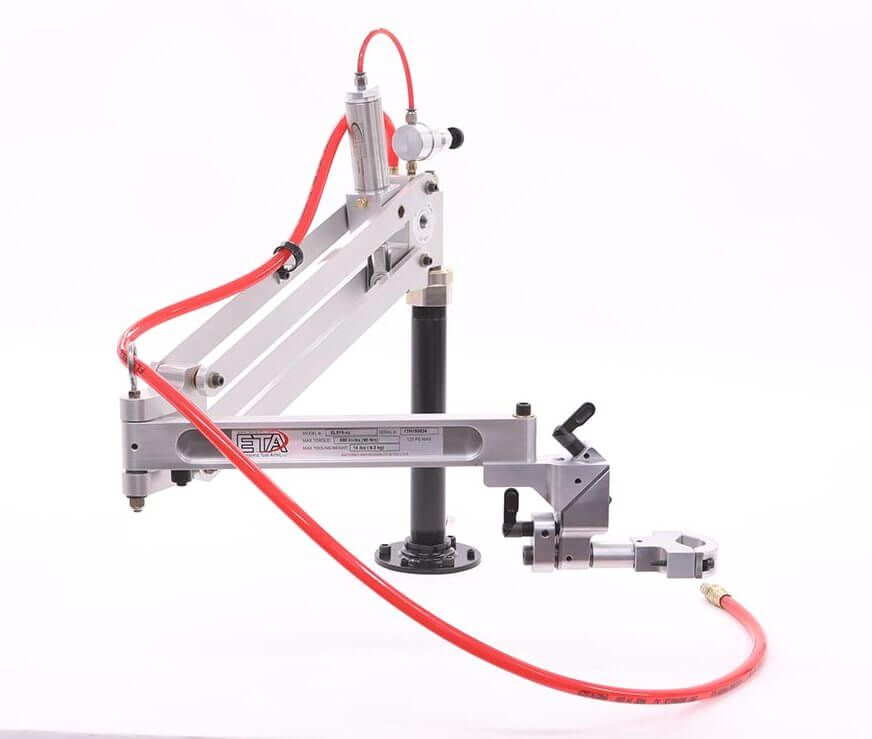

PA815-IPHV | Heavy Duty Arm for Inline or Pistol Air Tools that locks in both Horizontal and Vertical orientation.3/8" ID tool supply hose. 1/4 and 3/8 npt tool connections included. | Download Specs | 800 (90) | 400 (45) | 12.1 (5.5) | 41" (1041) | 12 inch (B125-12) | IPHV-TH |
PA1015-IPHV | Extra Heavy Duty Arm has thick Parallels with Cross Ties and a larger diameter Shoulder Pin and Bearings for even more rigidity during Horizontal rundowns of higher torque. 3/8" ID tool supply hose. 1/4 and 3/8 npt tool connections included. Also available with B250 Heavy Duty Base. | Download Specs | 800 (90) | 600 (68) | 11 (5) | 41" (1041) | 12 inch (B125-12) | IPHV-TH |
