Torque Arms for Fastening both VERTICALLY and HORIZONTALLY with the same INLINE or PISTOL Electric Tool

If your application requires you to drive vertical fasteners and horizontal fasteners in the same work zone and the same Inline or Pistol tool can do both, then the arms on this page can be an excellent ergonomic improvement. We designed this IPHV holder to be versatile and quick to change from vertical to horizontal. The arm is for Corded or Battery Powered, Inline or Pistol Tools only. It will not work with Right Angle tools.

EL-Series arms are meant to be used with electric tools or anything other than air tools. However, all EL-Series arms still require a shop air connection for the float cylinder. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).The volume of air needed is very low, less than 0.03 CFM. A 1/4″ (6mm) ID hose, at 80 psi (5.5 bar) minimum, is more than enough capacity.

The arms on this page is also available as an Overhead Mount model. Just add -OM to the end of any model number. For example EL815-IPHV-OM.

MODELDESCRIPTIONSPEC PDFMAX. VERT. TORQUE
in-lbs (Nm)
MAX. HORZ. TORQUE
in-lbs (Nm)
MAX. TOOL WEIGHT
lbs(Kg)
MAX. REACH
in. (mm)
STANDARD BASE INCLUDEDTOOL HOLDER INCLUDED

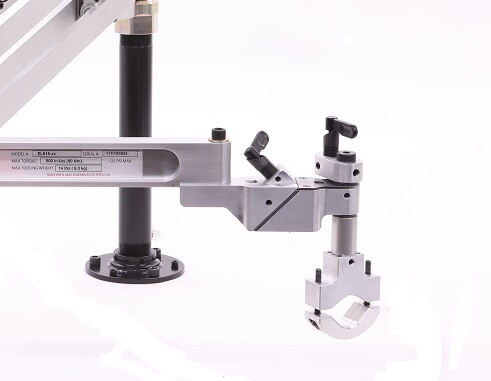

EL815-IPHVHeavy Duty Arm for Electric Inline or Pistol tools that locks in both Horizontal and Vertical orientation.Download Specs800 (90)400 (45)12.1 (5.5)41" (1041)12 inch (B125-12)IPHV-TH
EL1015-IPHVExtra Heavy Duty Arm for Electric Inline or Pistol tools that locks in both Horizontal and Vertical orientation and has thick Parallels with Cross Ties for more rigidity and less deflection during higher torque Horizontal rundowns. Comes with our standard 12" Base Assembly. EL1015-IPHV is also available with a B250 Extra Heavy Duty Base.Download Specs800 (90)600 (68)11 (5)41" (1041)12 inch (B125-12)IPHV-TH
