Driving horizontal fasteners with Right Angle Air Tools works well where space is limited for Pistol or Inline tools because Right Angle Tools will often fit into areas between two part features. The RAH holder allows easy positioning of the tool and the operator will not have to deal with torque reaction or tool weight. The RAH tool holder allows you to quickly index the handle in one of 12 positions with our precision thumb latch and keep it there indefinitely or change it instantly from fastener to fastener, even on the same assembly.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
All of these arms are also available as Overhead Mount models. Simply add -OM to the end on any model number. For example PA815-RAH-OM.
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|
| PA815-RAH | Heavy Duty Arm for Horizontal fastening with Right Angle Air Tools - 3/8" ID Tool Supply Hose | Download Specs | N/A | 400 (45) | 12.8 (5.8) | 37" (940) | 12 inch (B125-12) | RAH-TH |
| PA315-RAH | A shorter version of our PA815-RAH, for smaller work areas. 10.3" (261mm) Vertical Travel. 3/8" ID Tool Supply Hose | Download Specs | N/A | 400 (45) | 15 (6.75) | 25 (635) | 8 inch (B125-08) | RAH-TH |
| PA1015-RAH | Extra Heavy Duty Arm has thick Parallels with Cross Ties for more rigidity and less deflection during higher torque Horizontal rundowns. 3/8" ID Tool Supply Hose. Comes with our standard 12" Base Assembly. PA1015-RAH is also available with a B250 Extra Heavy Duty Base. | Download Specs | N/A | 600 (68) | 11 (5) | 37" (940) | 12 inch (B125-12) | RAH-TH |

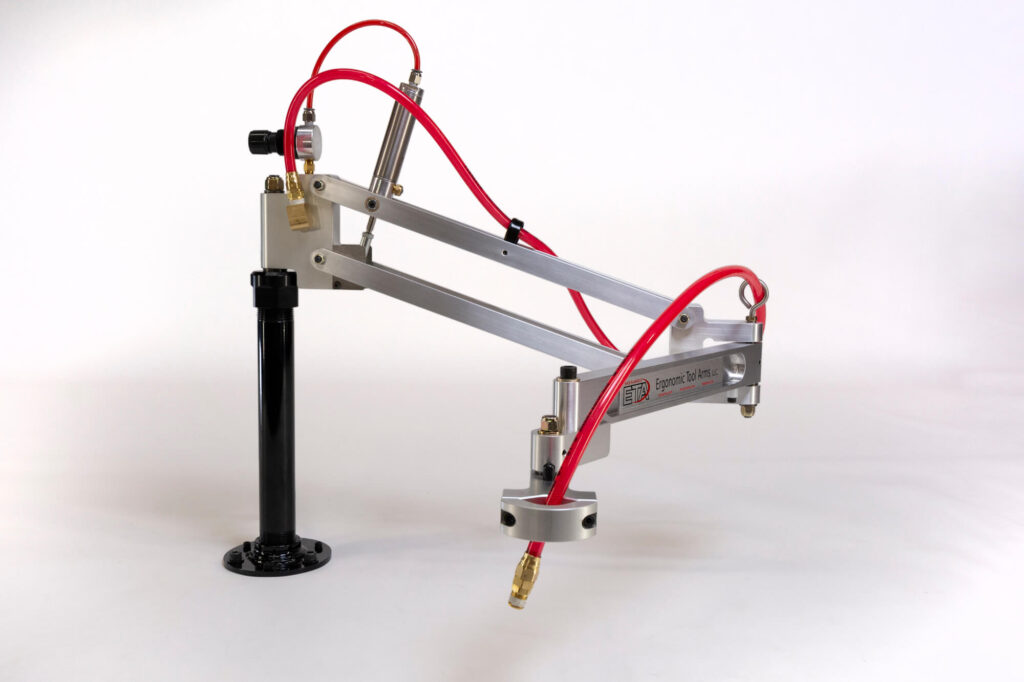

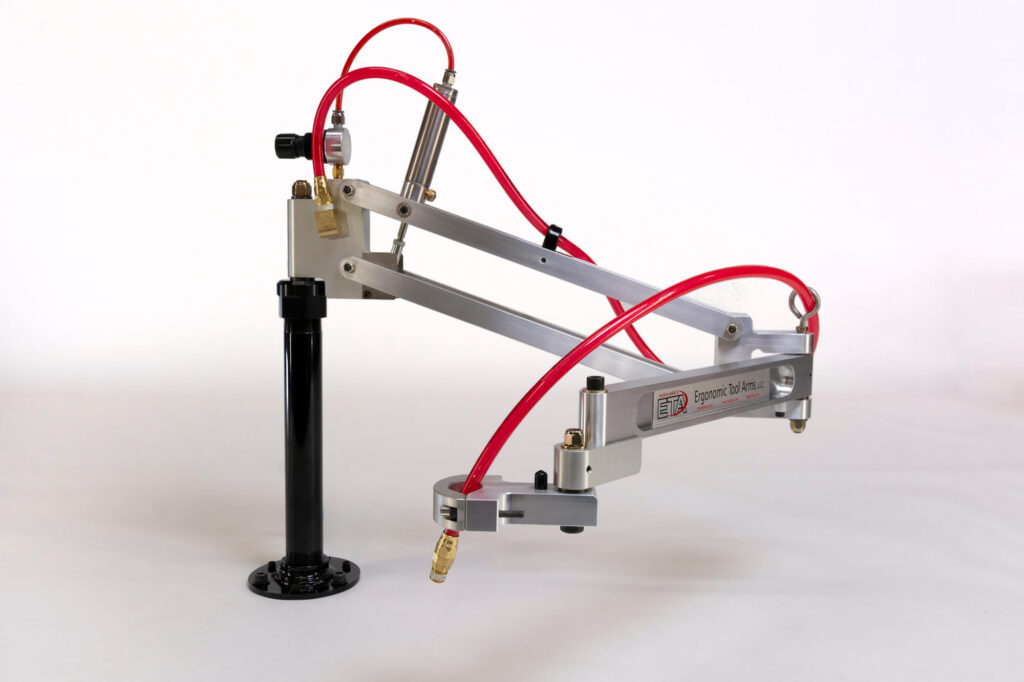

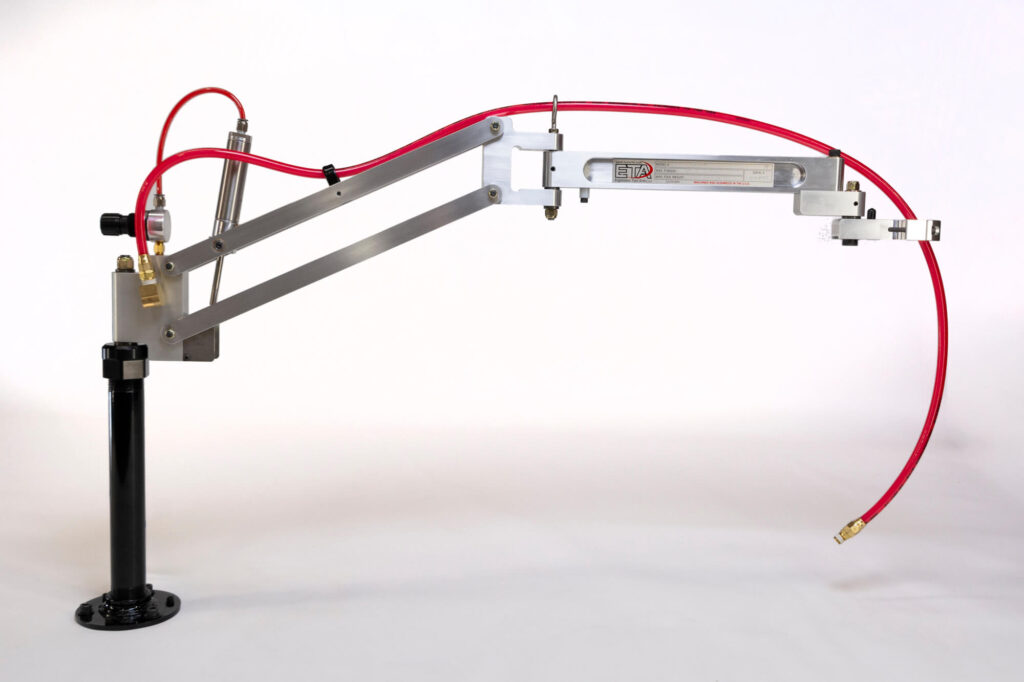

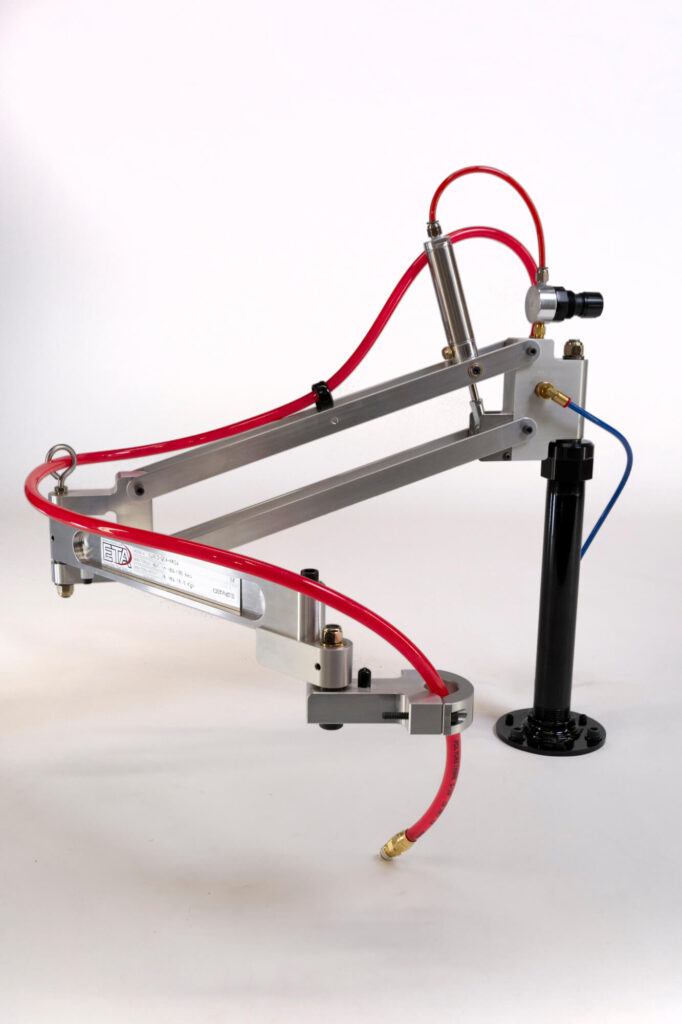

| PA506-SRA | Standard duty arm for horizontal (sideways) fastening with customer's right angle air tool with the handle positioned vertically. SRA-TH holds your right angle tool handle upward and allows it to swing freely 280 degrees for easy axial alignment with your fasteners. | Download Specs | N/A | 275 (31) | 4.5 (2.0) | 37 (940) | 12 inch (B125-12) | SRA-TH |
| PA806-SRA | Medium duty arm with a more rigid parallel rack than the 506 for horizontal (sideways) fastening with customer's right angle air tool with the handle positioned vertically. SRA-TH holds your right angle tool handle upward and allows it to swing freely 280 degrees for easy axial alignment with your fasteners. | Download Specs | N/A | 400 (45) | 4.5 (2.0) | 37 (940) | 12 inch (B125-12) | SRA-TH |
| PA815-SRA | Heavy duty arm has a rigid parallel rack like the 806, with a larger float cylinder for higher tooling weights. For horizontal (sideways) fastening with customer's right angle air tool with the handle positioned vertically. SRA-TH holds your right angle tool handle upward and allows it to swing freely 280 degrees for easy axial alignment with your fasteners. | Download Specs | N/A | 400 (45) | 13.5 (6.1) | 37 (940) | 12 inch (B125-12) | SRA-TH |
