All arms on this page include either UV-TH (Universal Vertical-Tool Holder) or TUV-TH (Thin Universal Vertical-Tool Holder) for clamping any tool diameter from 1-1/8″ to 2.0″ (28.6 to 50.8mm). Most of the time vertical fasteners are driven downward, however these arms can also be used to support tools fastening upward from underneath a product.
EL-Series arms are meant to be used with electric tools or anything other than air tools. However, all EL-Series arms still require a shop air connection for the float cylinder. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).The volume of air needed is very low, less than 0.03 CFM. A 1/4″ (6mm) ID hose, at 80 psi (5.5 bar) minimum, is more than enough capacity.
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|
| EL506-UV | Standard Duty Arm for lighter torques and small tools. Note; originally this model was called PA506-EL and then just EL506 as our product line increased and its final designation is EL506-UV | Download Specs | 550 (62) | N/A | 5 (2.25) | 38.5" (978) | 12 inch (B125-12) | UV-TH |
| EL306-UV | A shorter version of our EL506-UV, for smaller work areas. 10.3" (261mm) Vertical Travel | Download Specs | 550 (62) | N/A | 5 (2.25) | 26.5" (673) | 8 inch (B125-8) | UV-TH |
| EL506-TUV | Standard Duty Arm for lighter torques and small tools with TUV-TH, a thinner version of our UV-TH for tools with less clamping area. | Download Specs | 550 (62) | N/A | 5 (2.25) | 38.5" (978) | 12 inch (B125-12) | TUV-TH |
| EL306-TUV | A shorter version of our EL506-TUV, for smaller work areas. 10.3" (261mm) Vertical Travel | Download Specs | 550 (62) | N/A | 5 (2.25) | 26.5" (673) | 8 inch (B125-8) | TUV-TH |
| EL806-UV | Medium Duty Arm has a more rigid Parallel Rack than the EL506-UV. | Download Specs | 800 (90) | N/A | 5 (2.25) | 38.5" (978) | 12 inch (B125-12) | UV-TH |
| EL806-TUV | Medium Duty Arm has a more rigid Parallel Rack than the EL506-TUV for higher torques. TUV-TH is a thinner version of our UV-TH for tools with less clamping area. | Download Specs | 800 (90) | N/A | 5 (2.25) | 38.5" (978) | 12 inch (B125-12) | TUV-TH |

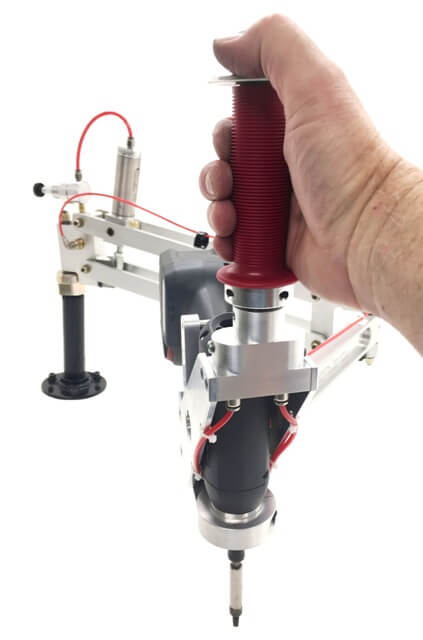

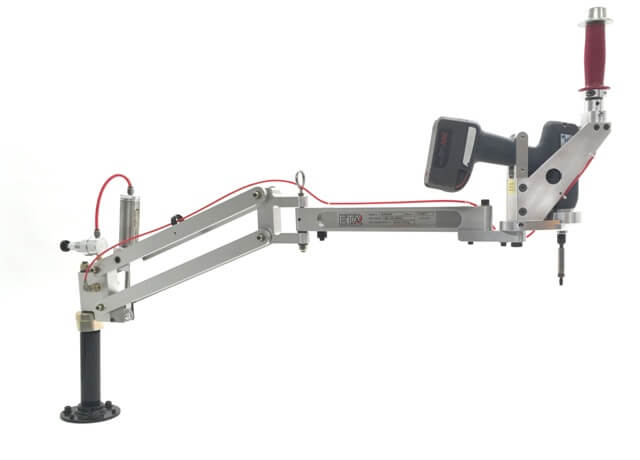

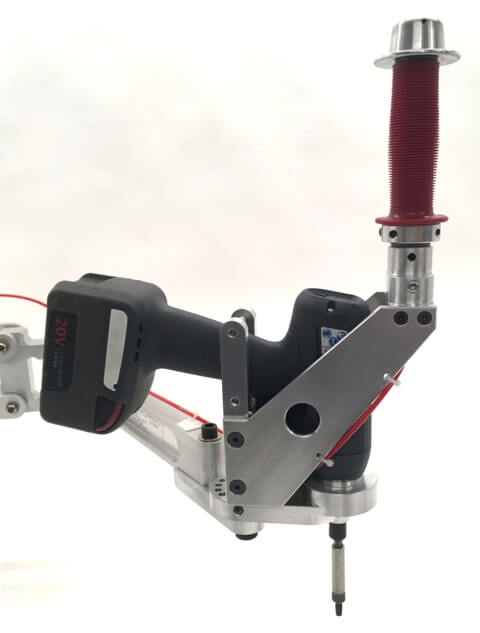

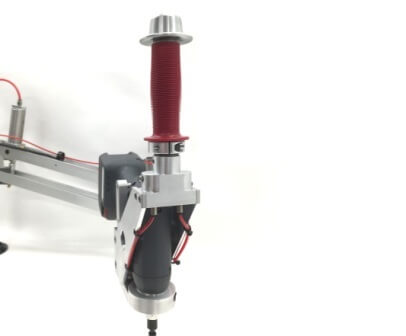

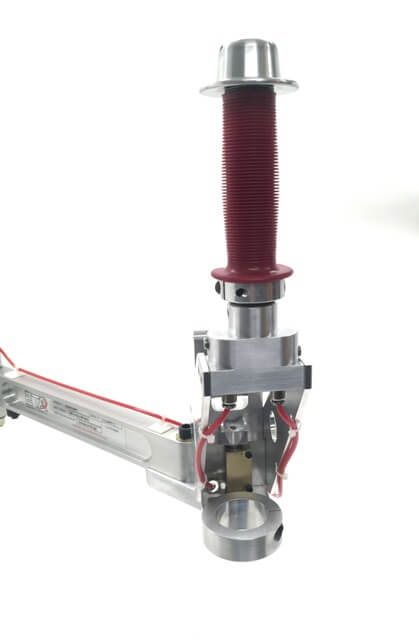

| EL815-UV | Heavy Duty Arm has a rigid Parallel Rack like the EL806-UV but with a larger Float Cylinder for higher tooling weights. Note; originally this model was called PA815-EL and then just EL815 as our product line increased and now its final designation is EL815-UV. | Download Specs | 800 (90) | N/A | 14 (6.3) | 38.5" (978) | 12 inch (B125-12) | UV-TH |
| EL315-UV | A shorter version of model EL815-UV, for smaller work areas. 10.3" (261mm) Vertical Travel. | Download Specs | 800 (90) | N/A | 14 (6.3) | 26.5" (673) | 8 inch (B125-8) | UV-TH |
| EL815-TUV | Heavy Duty Arm has a rigid Parallel Rack like the EL806-TUV but with a larger Float Cylinder for higher tooling weights. TUV-TH is a thinner version of our UV-TH for tools with less clamping area. | Download Specs | 800 (90) | N/A | 14 (6.3) | 38.5" (978) | 12 inch (B125-12) | TUV-TH |
| EL315-TUV | A shorter version of model EL815-TUV, for smaller work areas. 10.3" (261mm) Vertical Travel. | Download Specs | 800 (90) | N/A | 14 (6.3) | 26.5" (673) | 8 inch (B125-8) | TUV-TH |
