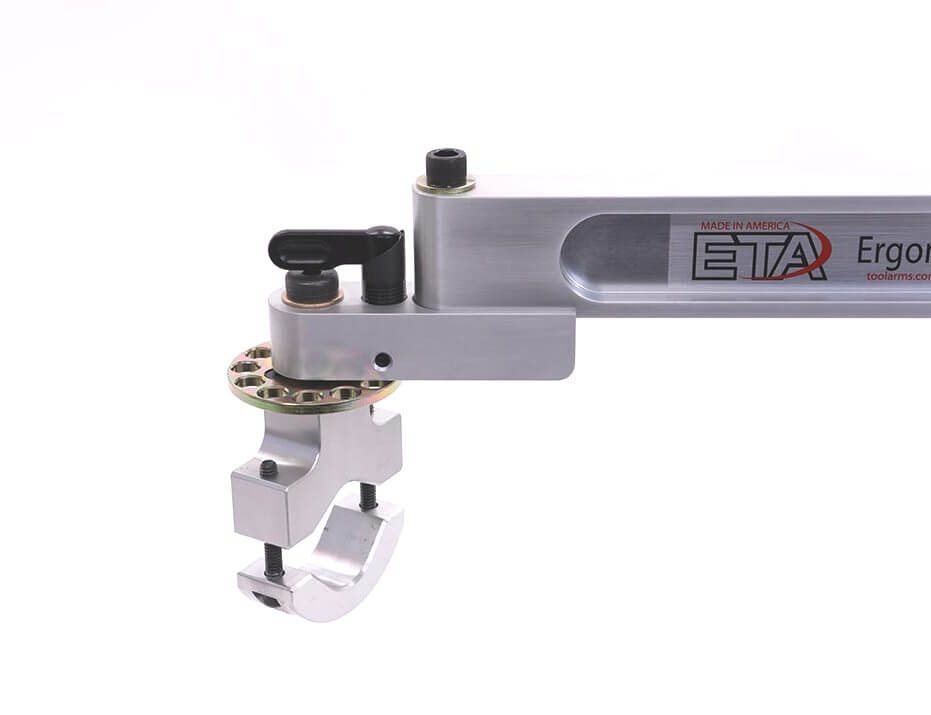

All arms on this page include RAV-TH (Right Angle Vertical-Tool Holder) for clamping any air tool diameter from 1-1/8″ to 2.0″ (28.6 to 50.8mm). The RAV tool holder allows you to quickly index the handle in one of 12 positions with our precision thumb latch and keep it there indefinitely or change it instantly from fastener to fastener, even on the same assembly.
Most of the time vertical fasteners are driven downward and that is the intended use of the arms on this page. However these arms can also be built to support tools fastening upward from underneath a product as well. Just let us know when ordering that you are driving upward and we can mount the RAV-TH on the top side of the Forearm.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
All of these arms are also available as Overhead Mount models. Simply add -OM to the end on any model number. Example; PA806-RAV-OM.
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|

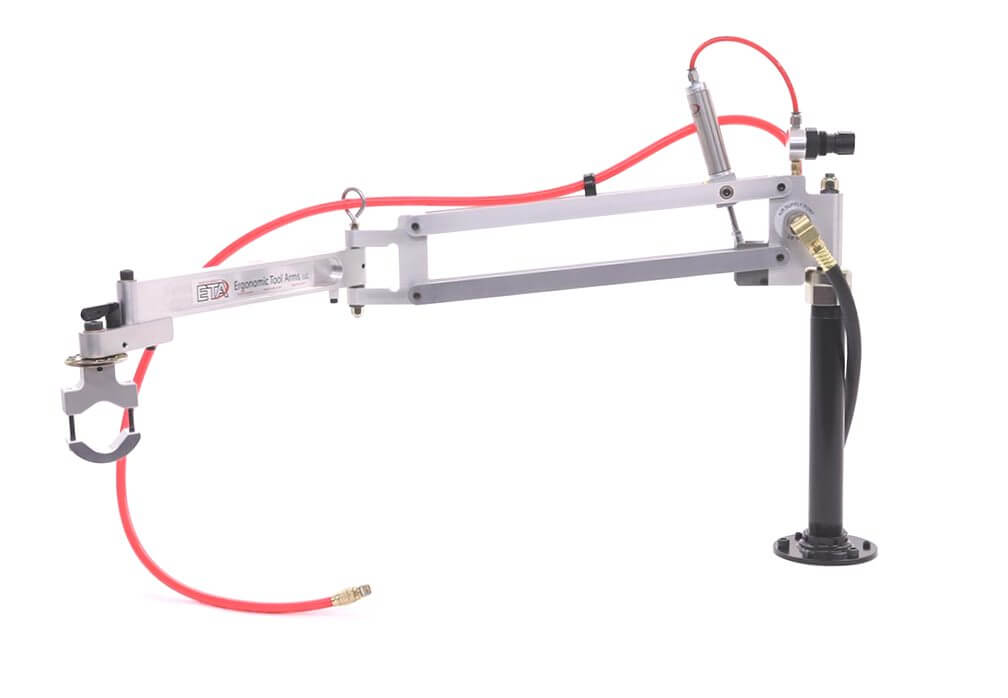

| PA506-RAV | Standard Duty Arm for VERTICAL Fastening with small Right Angle Air Tools - 5/16" ID Tool Supply Hose with 1/4 npt swivel fitting. | Download Specs | 550 (62) | N/A | 4.5 (2.0) | 36 (915) | 12 inch (B125-12) | RAV-TH |
| PA306-RAV | A shorter version of PA506-RAV for smaller work areas. 10.3" (261 mm) vertical travel - 5/16" ID Tool Supply Hose with 1/4 npt swivel fitting. | Download Specs | 550 (62) | N/A | 4.5 (2.0) | 26 (660) | 8 inch (B125-08) | RAV-TH |
| PA806-RAV | Medium Duty Arm for VERTICAL Fastening with a Right Angle Air Tools. PA806-RAV has a more rigid Parallel Rack than the PA506-RAV. - 3/8" ID Tool Supply Hose with swivel fitting, 3/8 & 1/4 npt connections. | Download Specs | 800 (90) | N/A | 4.5 (2.0) | 36" (915) | 12 inch (B125-12) | RAV-TH |
| PA815-RAV | Heavy Duty Arm for VERTICAL Fastening with a Right Angle Air Tool has a more rigid Parallel Rack and a larger cylinder for heavier tools. - 3/8" ID Tool Supply Hose with swivel fitting, 3/8 & 1/4 npt connections. | Download Specs | 800 (90) | N/A | 13.5 (6.1) | 36" (915) | 12 inch (B125-12) | RAV-TH |
| PA315-RAV | A shorter version of PA815-RAV for smaller work areas. 10.3" (261 mm) vertical travel. - 3/8" ID Tool Supply Hose with swivel fitting, 3/8 & 1/4 npt connections. | Download Specs | 800 (90) | N/A | 13.5 (6.1) | 26" (660) | 8 inch (B125-08) | RAV-TH |
