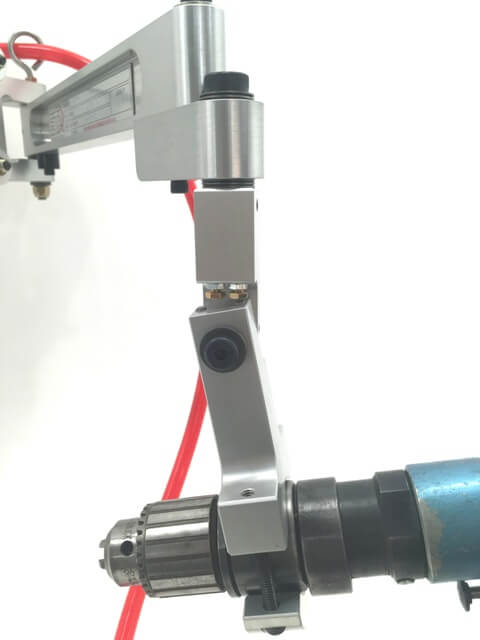

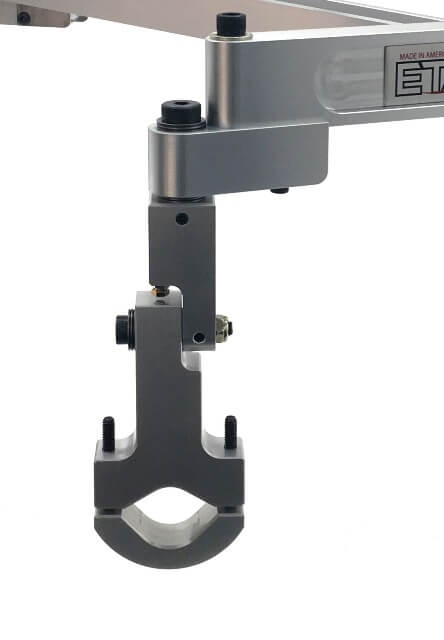

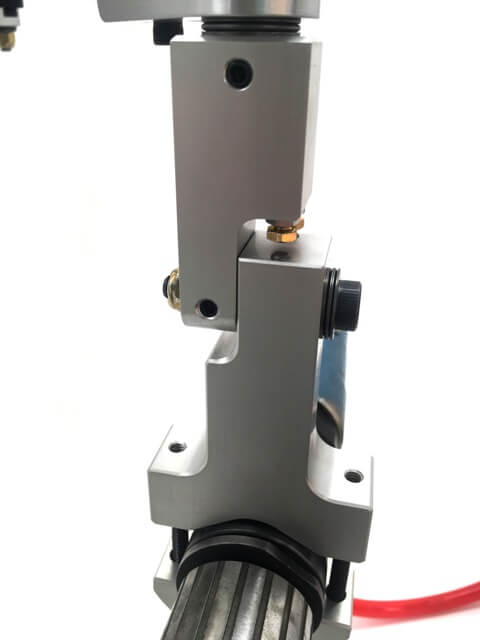

All arms on this page include PT-TH (Pistol Tilt-Tool Holder). Some assembly applications have fasteners that are almost horizontal but still require a little slant. PT-TH is used for those applications requiring as much as 20 degrees below and above the horizontal plane and will clamp any air tool diameter from 1-1/8″ to 2.0″ (28.6 to 50.8mm). The tilt angle limits are adjustable from 0 to 20+ degrees above and below horizontal.
The models below will work with pneumatic pistol tools and inline tools only. They can also be used with air powered rivet tools. They will not stop torque reaction of right angle tools.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
All of these arms are also available as Overhead Mount models. Simply add –OM to the end on any model number. Example; PA815-PT-OM.
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|

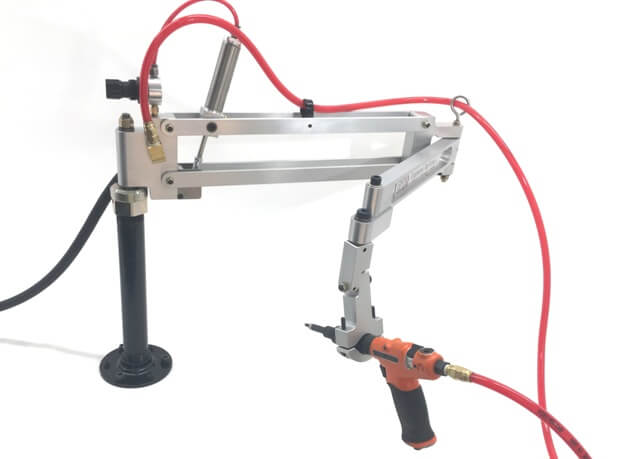

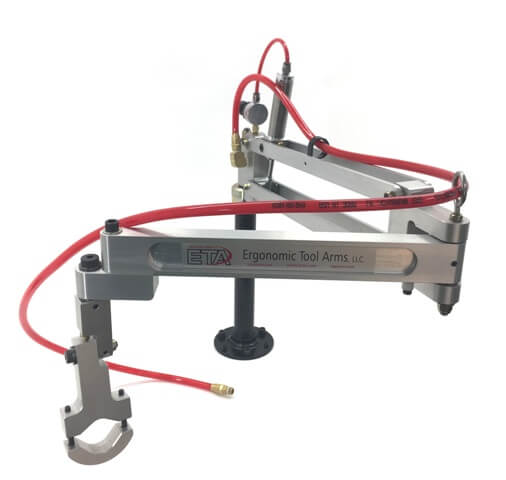

| PA506-PT | Standard Duty Arm for Fastening Slightly Off Horizontal with smaller Pistol or Inline Air Tools. | Download Specs | N/A | 275 (31) | 4.8 (2.16) | 37 (940) | 12 inch (B125-12) | PT-TH |
| PA806-PT | Medium Duty Arm with more ridged Parallel Rack for fastening Slightly Off Horizontal with Inline or Pistol Air Tools. | Download Specs | N/A | 400 (45) | 4.8 (2.16) | 37 (940) | 12 inch (B125-12) | PT-TH |
| PA815-PT | Heavy Duty Arm with more ridged Parallel Rack and larger Float Cylinder for higher weights. Used for fastening Slightly Off Horizontal with Inline or Pistol Air Tools. | Download Specs | N/A | 400 (45) | 13.8 (6.2) | 37 (940) | 12 inch (B125-12) | PT-TH |
