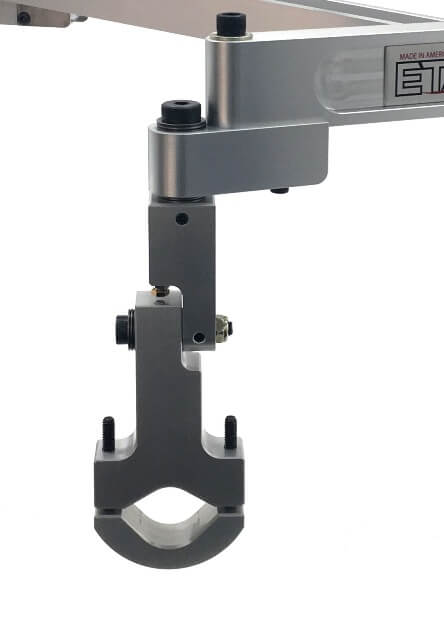

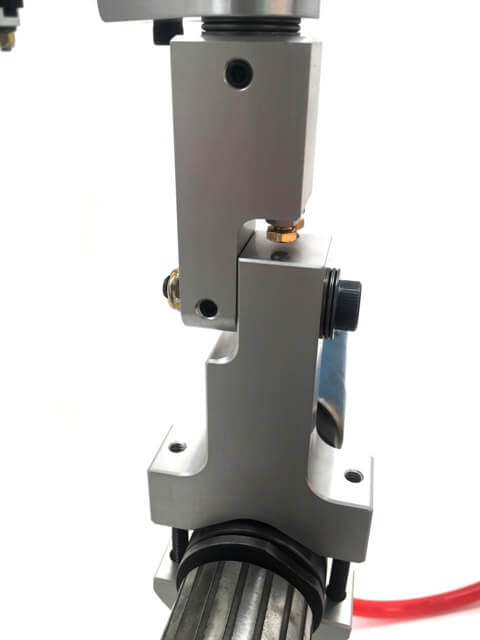

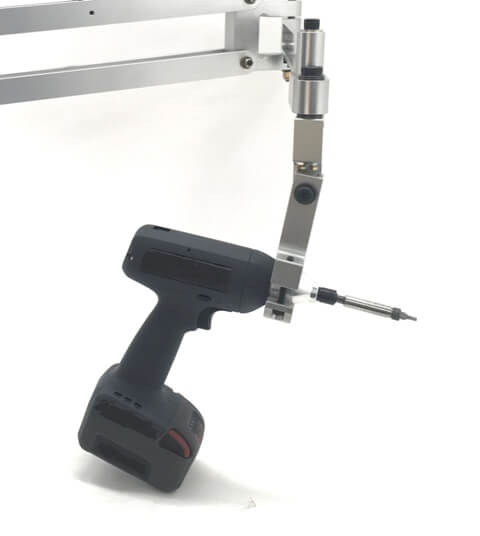

All arms on this page include PT-TH (Pistol Tilt-Tool Holder) Some assembly applications have fasteners that are almost horizontal but still require a little slant. PT-TH is used for those applications requiring as much as 20 degrees below and above the horizontal plane and will clamp any tool diameter from 1-1/8″ to 2.0″ (28.6 to 50.8mm).The tilt angle limits are adjustable from 0 to 20+ degrees above and below horizontal.
The models below will work with corded and battery powered electric pistol tools and inline tools only. They will not stop torque reaction of right angle tools.
EL-Series arms are meant to be used with electric tools or anything other than air tools. However, all EL-Series arms still require a shop air connection for the float cylinder. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).The volume of air needed is very low, less than 0.03 CFM. A 1/4″ (6mm) ID hose, at 80 psi (5.5 bar) minimum, is more than enough capacity.
All of these arms are also available as Overhead Mount models. Simply add –OM to the end on any model number. Example; EL806-PT-OM.

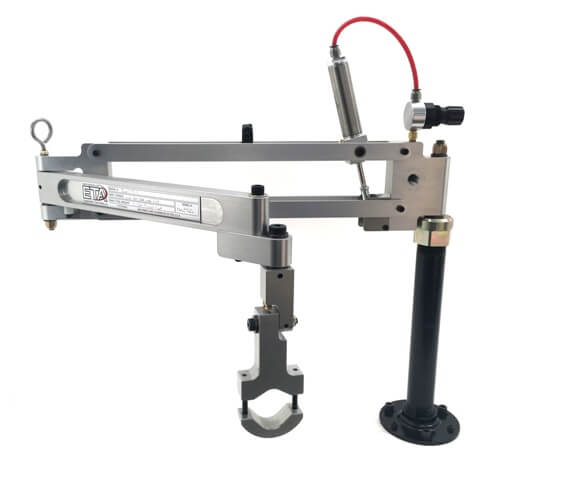

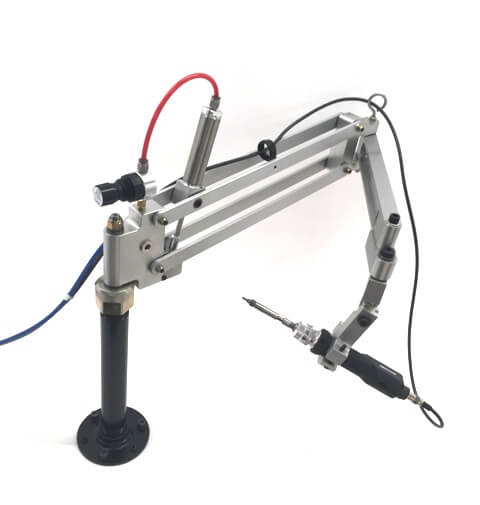

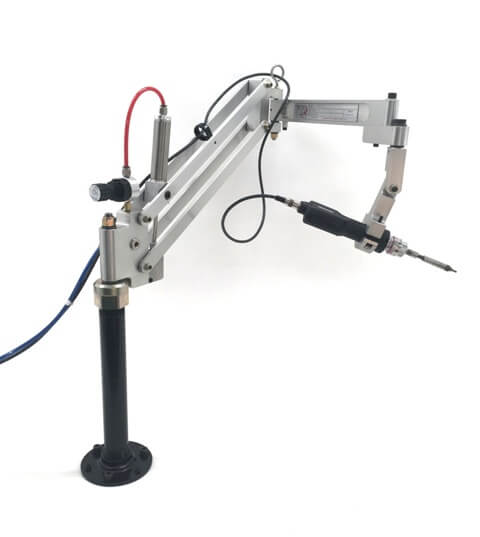

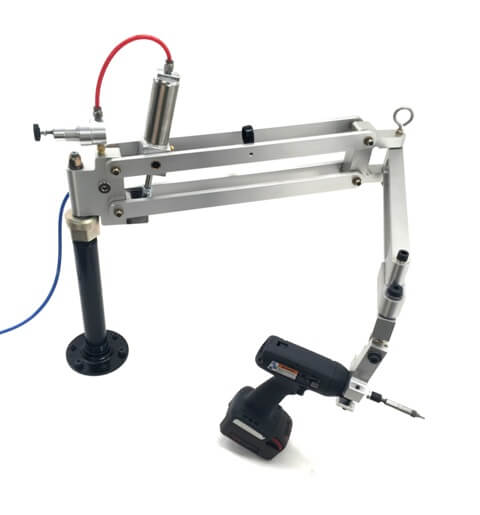

| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|
| EL506-PT | Standard Duty Arm for Horizontal and Slightly Off Horizontal Fastening with small Inline or Pistol Electric tools. | EL506-PTDownload Specs | N/A | 275 (31) | 4.8 (2.16) | 37" (940) | 12 inch (B125-12) | PT-TH |
| EL806-PT | Medium Duty Arm for Horizontal and Slightly Off Horizontal Fastening. EL806-PT has a more rigid Parallel Rack than EL506-PT for higher torques using Inline or Pistol Electric tools. | EL806-PTDownload Specs | N/A | 400 (45) | 4.8 (2.16) | 37" (940) | 12 inch (B125-12) | PT-TH |
| EL815-PT | Heavy Duty Pistol Tilt Arm has a rigid Parallel Rack like the EL806-PT but with a larger Float Cylinder for higher tooling weights. | EL815-PTDownload Specs | N/A | 400 (45) | 13.8 (6.2) | 37" (940) | 12 inch (B125-12) | PT-TH |
