Torque Arms for Fastening Both VERTICALLY and HORIZONTALLY with the same Electric RIGHT ANGLE Tool

If your application requires you to drive vertical fasteners and horizontal fasteners in the same work zone and the same Right Angle tool can do both, then the arms on this page can be an excellent ergonomic improvement as well as protecting your investment in quality assembly tools. We designed this RAHV holder to be versatile and quick to change from vertical to horizontal. These arms are for Corded or Battery Powered Right Angle Tools only.

EL-Series arms are meant to be used with electric tools or anything other than air tools. However, all EL-Series arms still require a shop air connection for the float cylinder. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).The volume of air needed is very low, less than 0.03 CFM. A 1/4″ (6mm) ID hose, at 80 psi (5.5 bar) minimum, is more than enough capacity.

Both models on this page are available as Overhead Mount models. Just add -OM to the end of any model number. For example EL815-RAHV-OM

MODELDESCRIPTIONSPEC PDFMAX. VERT. TORQUE
in-lbs (Nm)
MAX. HORZ. TORQUE
in-lbs (Nm)
MAX. TOOL WEIGHT
lbs(Kg)
MAX. REACH
in. (mm)
STANDARD BASE INCLUDEDTOOL HOLDER INCLUDED

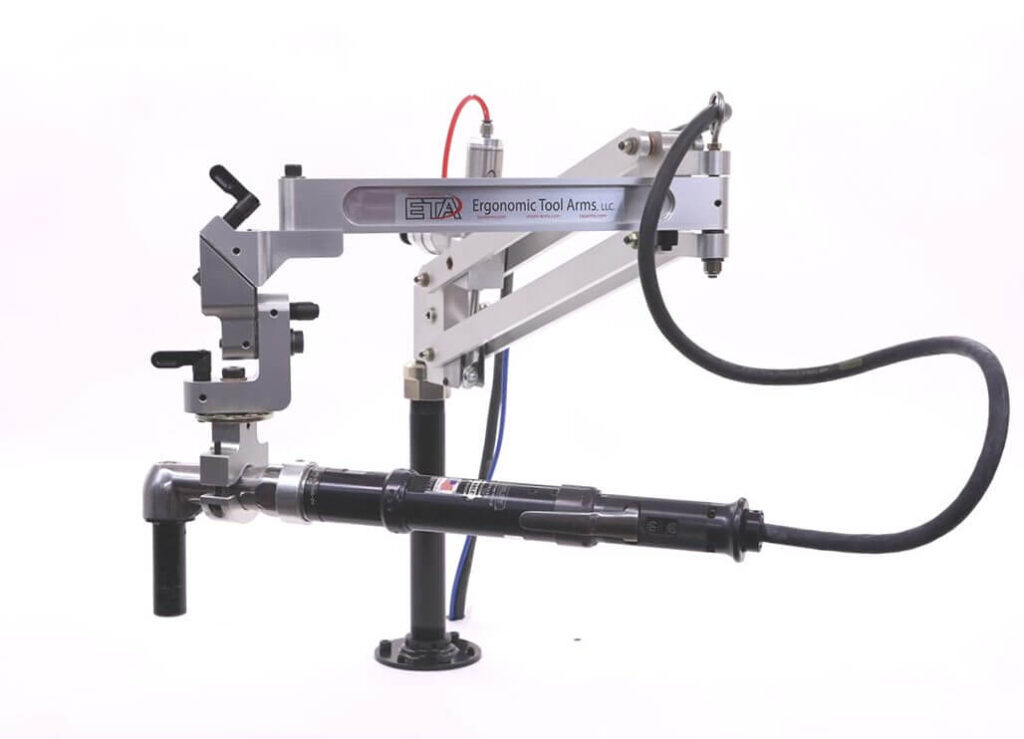

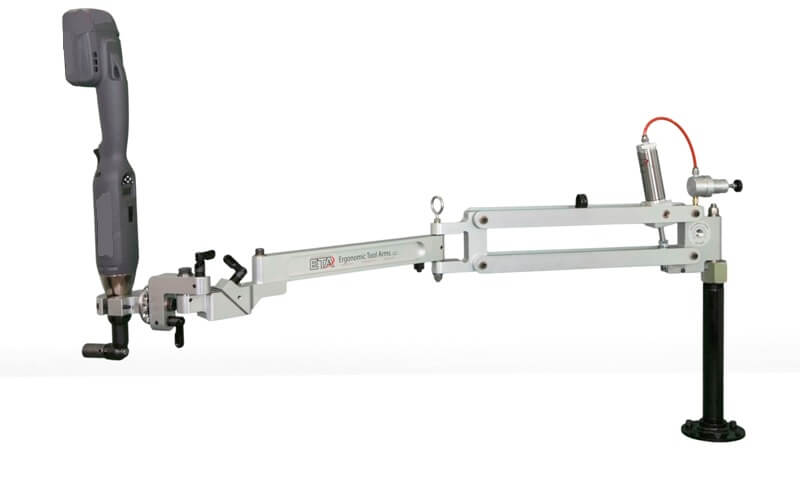

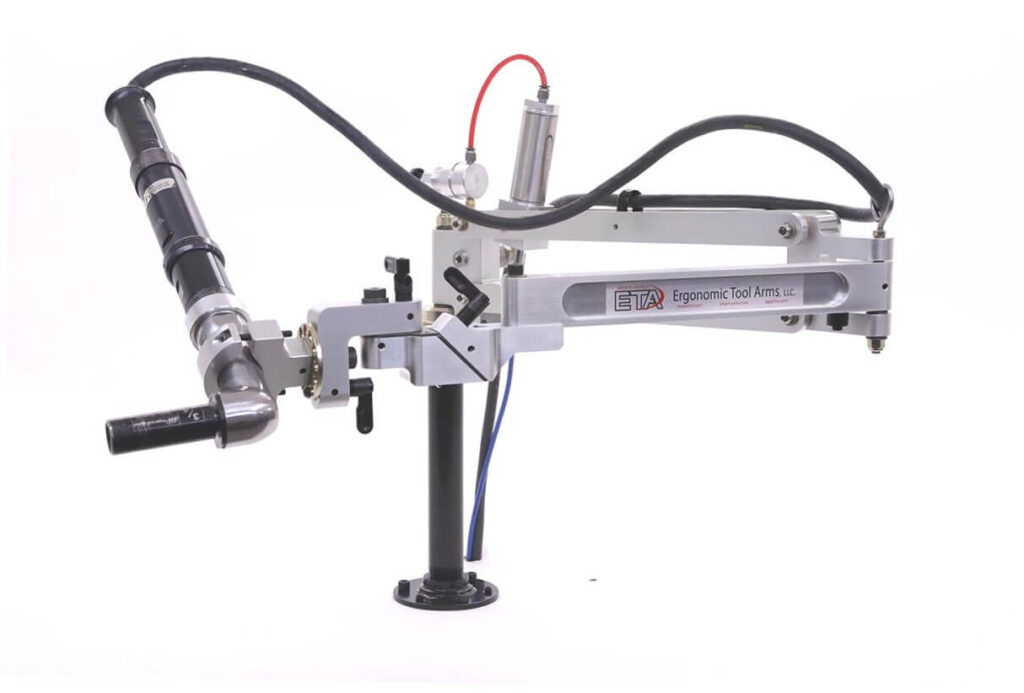

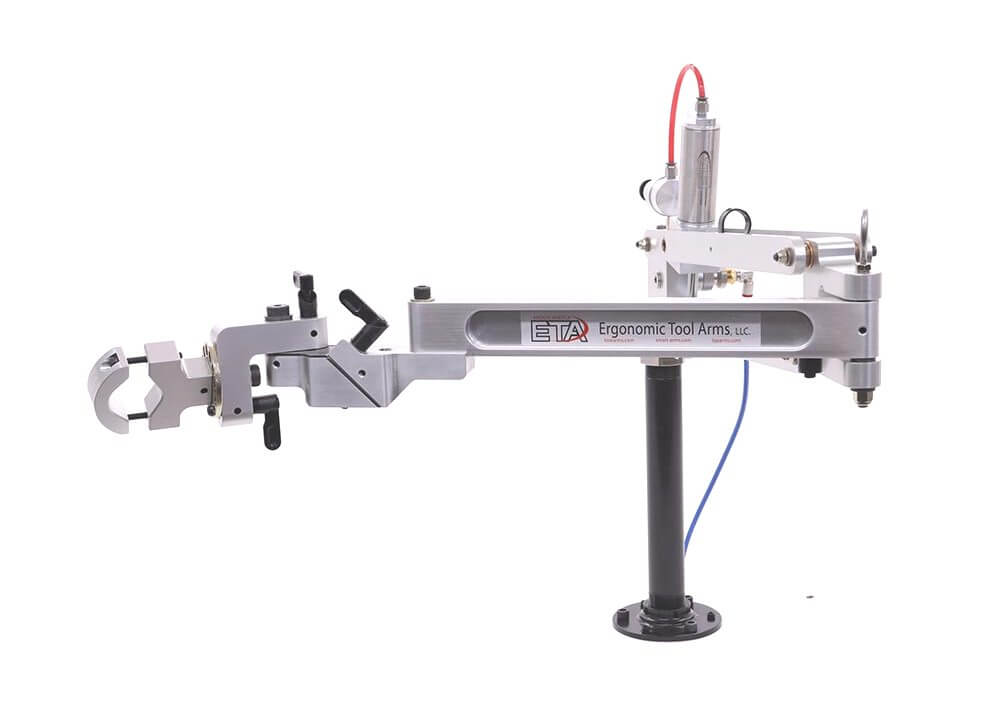

EL815-RAHVHeavy Duty Arm for Electric Right Angle tools that locks in both Horizontal and Vertical orientation.Download Specs800 (90)400 (45)11.25 (5.1)41" (1042)12 inch (B125-12)RAHV-TH
EL1015-RAHVExtra Heavy Duty Arm for Electric Right Angle tools that locks in both Horizontal and Vertical orientation. 1015 frame has thick Parallels with Cross Ties and a larger diameter Shoulder Pin for rigidity needed at higher horizontal torques. This arm is also available with a B250 Extra Heavy Duty Base.Download Specs800 (90)600 (68)10 (4.5)41" (1042)12 inch (B125-12)RAHV-TH
