Basic Tool Arm Models WITHOUT TOOL HOLDERS or AIR FITTINGS. Add Standard or Custom Tool Holders, Fixtures, Test Equipment, Etc.

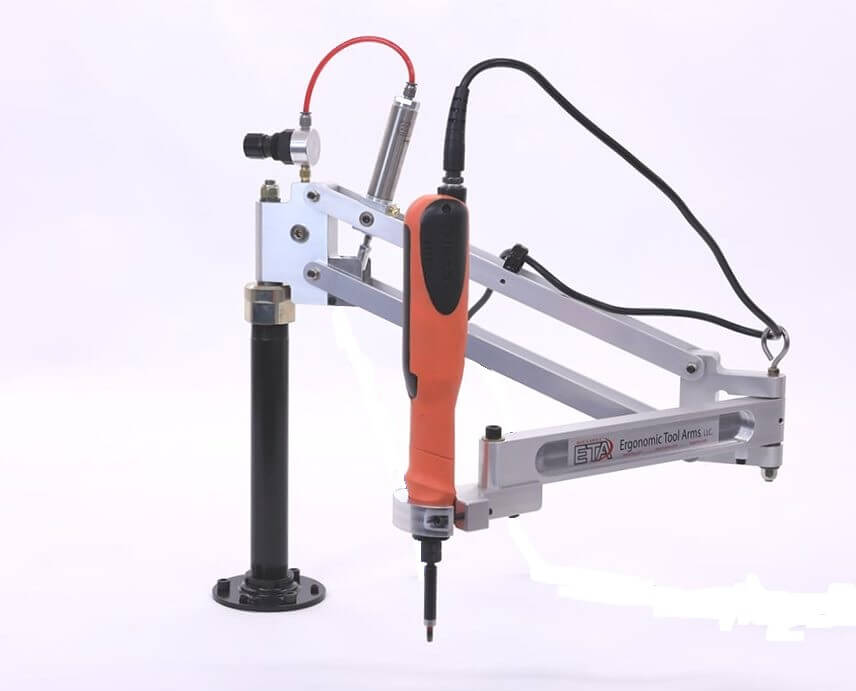

EL-Series arms are meant to be used with electric tools or anything other than air tools. However, all EL-Series arms still require a shop air connection for the float cylinder. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).The volume of air needed is very low, less than 0.03 CFM. A 1/4″ (6mm) ID hose, at 80 psi (5.5 bar) minimum, is more than enough capacity.
| MODEL | DESCRIPTION | SPEC PDF | MAX. VERT. TORQUE in-lbs (Nm) | MAX. HORZ. TORQUE in-lbs (Nm) | MAX. TOOL WEIGHT lbs(Kg) | MAX. REACH in. (mm) | STANDARD BASE INCLUDED | TOOL HOLDER INCLUDED |
|---|---|---|---|---|---|---|---|---|

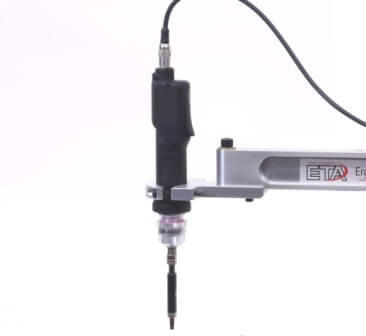

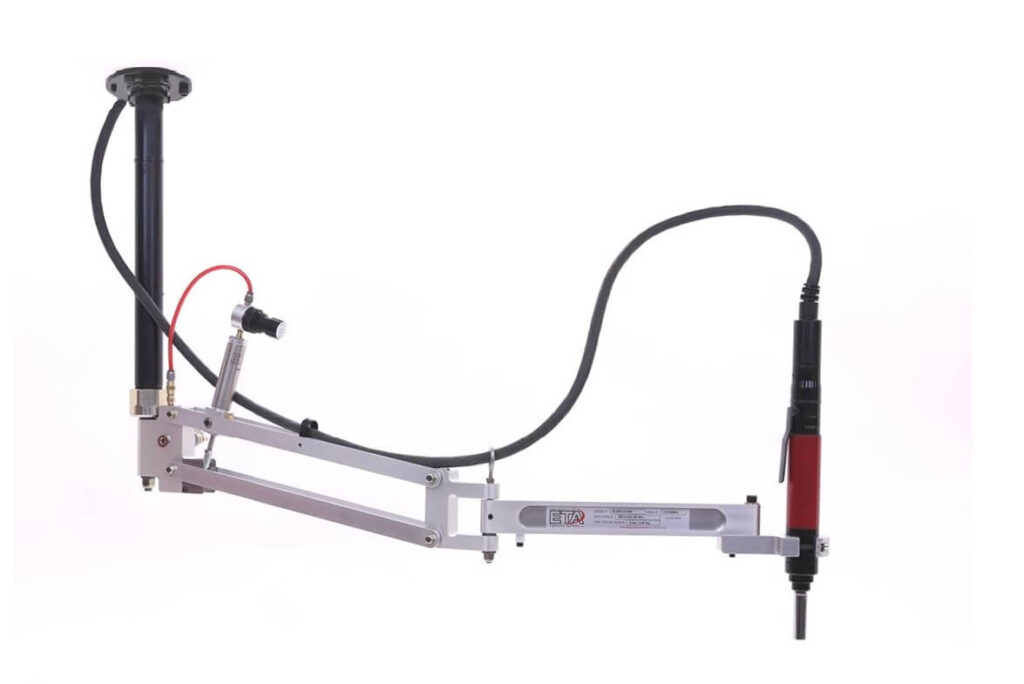

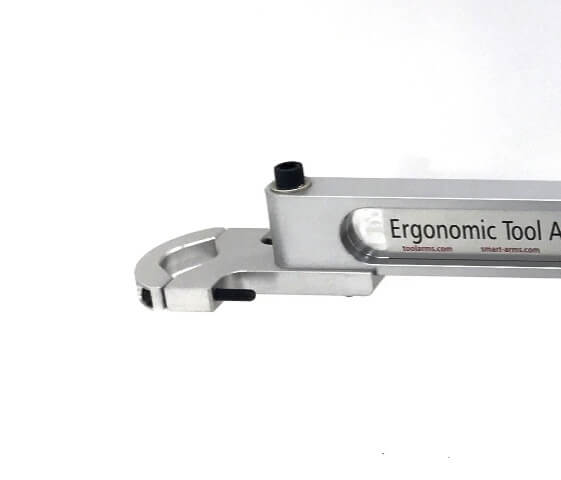

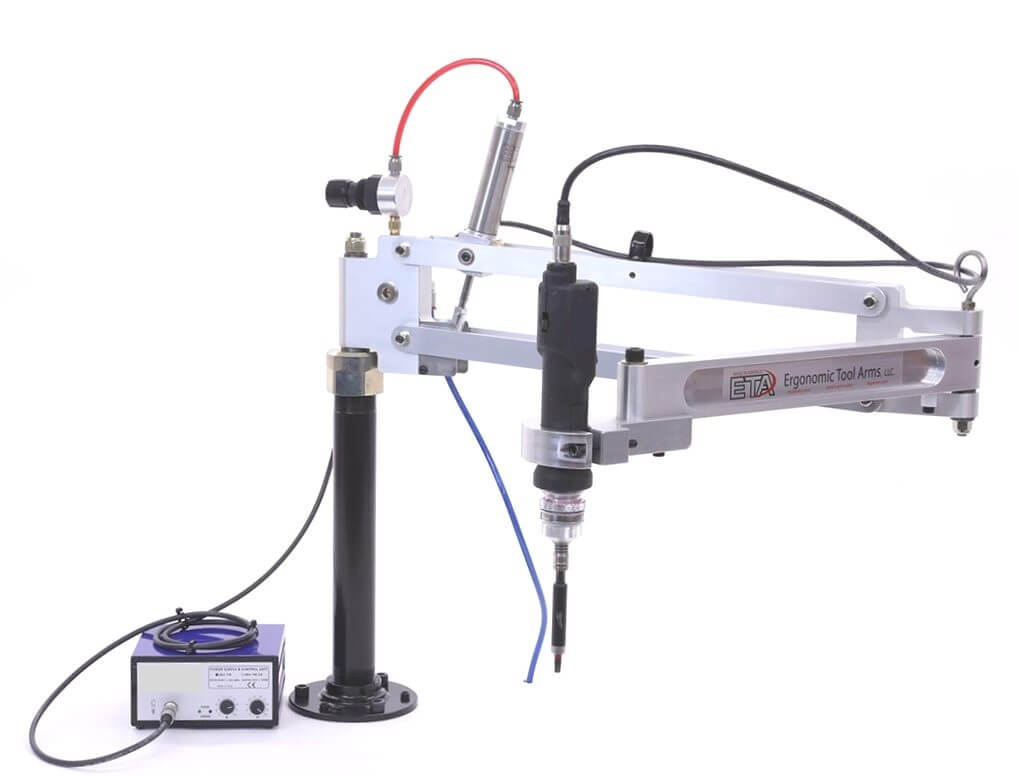

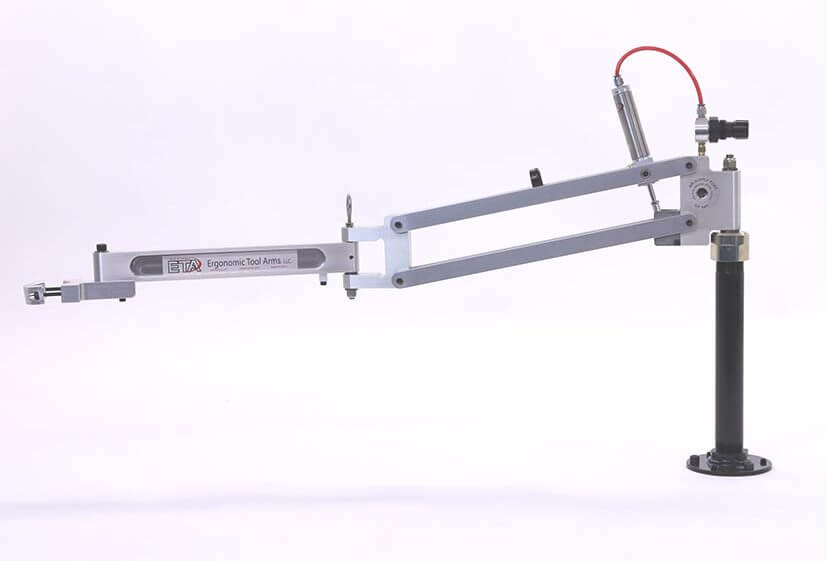

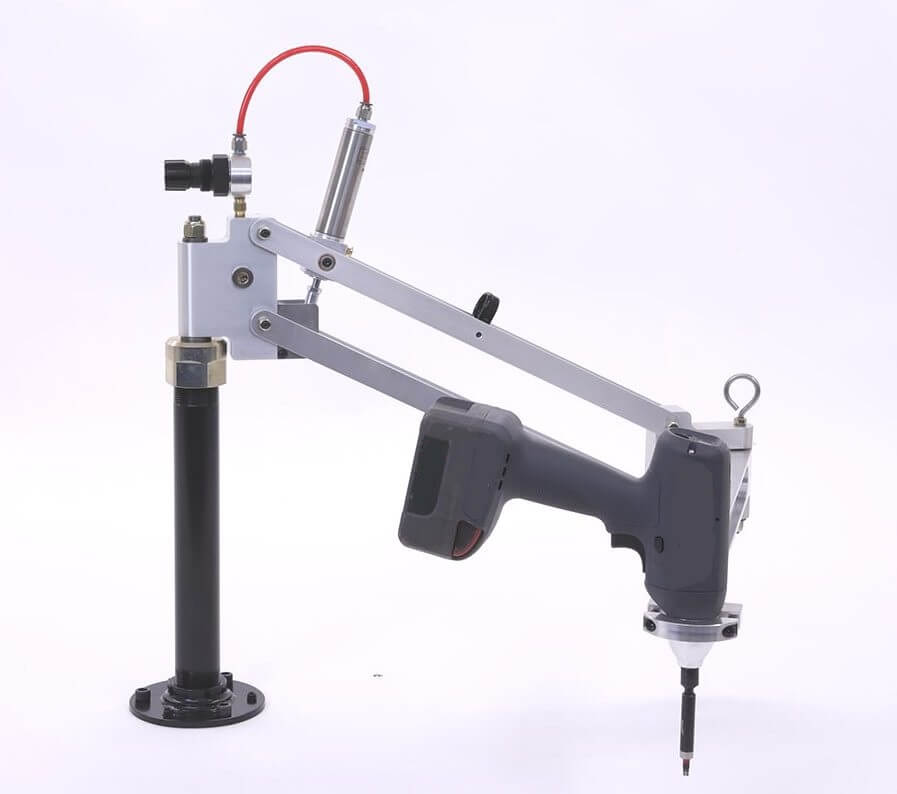

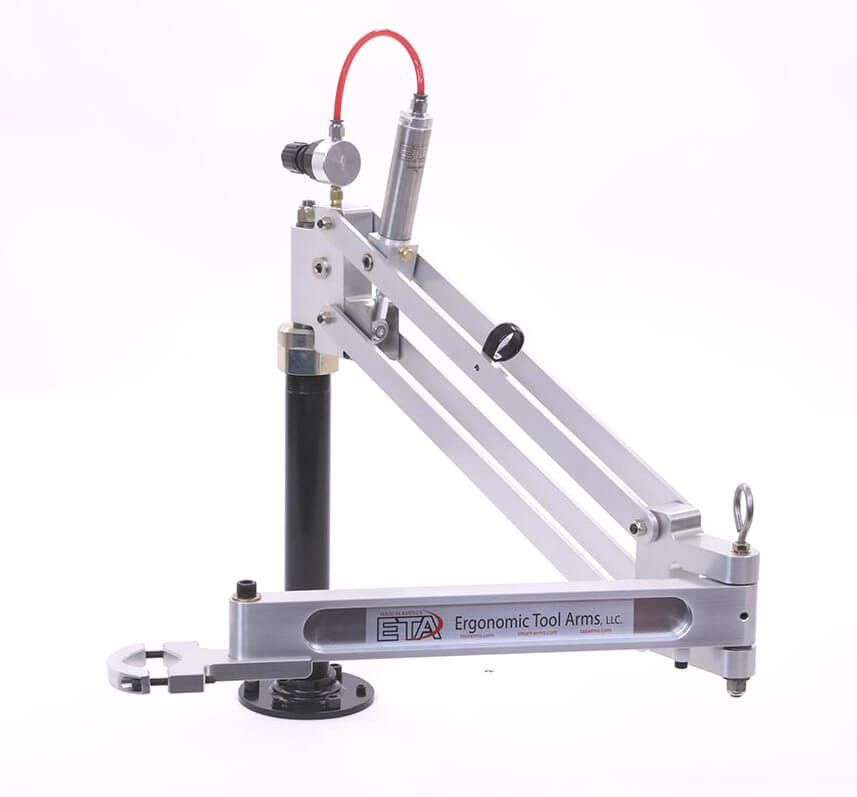

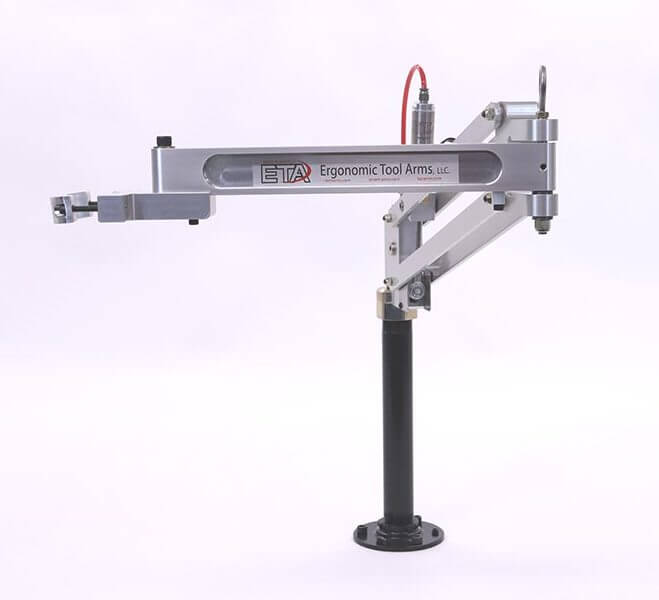

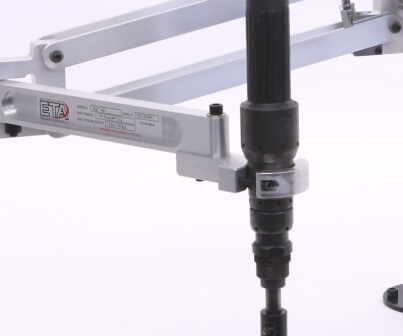

| EL506-N | Standard Duty Untooled Arm for lighter tools and fixtures | EL506-N | 550 (62) | 275 (31) | 6 (2.7) | 36" (915) | 12 inch (B125-12) | NONE |

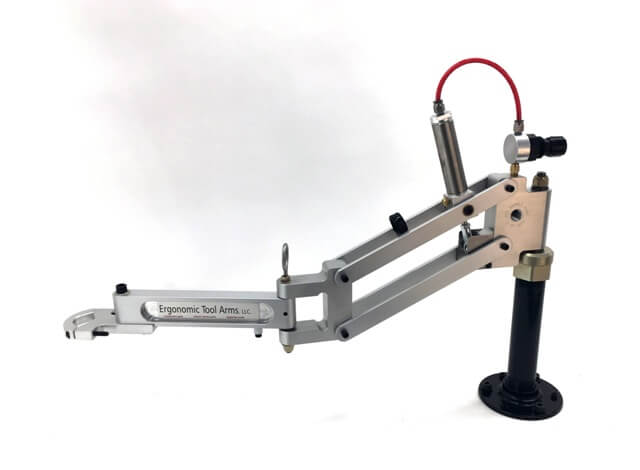

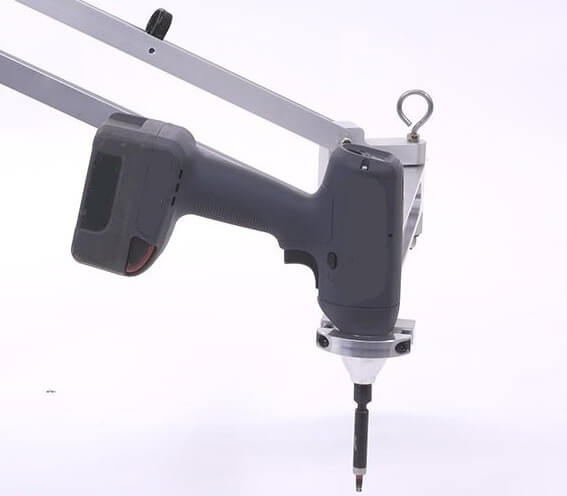

| EL306-N | A shorter version of model EL506-N with less reach for smaller work areas. 10.3" (261mm) Vertical Travel | EL306-N | 550 (62) | 275 (31) | 6 (2.7) | 24" (610) | 8 inch (B125-08) | NONE |
| EL806-N | Medium Duty Untooled Arm with more rigid Parallel Rack than the 506 | EL806-N | 800 (90) | 400 (45) | 6 (2.7) | 36" (915) | 12 inch (B125-12) | NONE |
| EL815-N | Heavy Duty Untooled Arm has a rigid Parallel Rack like the 806 with a larger Float Cylinder for higher tooling weights | EL815-N | 800 (90) | 400 (45) | 15 (6.8) | 36" (915) | 12 inch (B125-12) | NONE |
| EL315-N | A shorter version of our EL815-N for smaller work areas. 10.3" (261mm) Vertical Travel | EL315-N | 800 (90) | 400 (45) | 15 (6.8) | 24" (610) | 8 inch (B125-08) | NONE |
| EL1015-N-B125 | Extra Heavy Duty Untooled Arm has thick Parallels with Cross Ties for even more rigidity and a larger diameter Shoulder Pin and Bearings than the 815. | EL1015-N-B125 | 1,100 (125) | 600 (68) | 14 (6.3) | 36" (915) | 12 inch (B125-12) | NONE |
| EL1015-N-B250 | Same as EL1015-N above but with B250 Base Kit for extending the EL1015-N more than 12" from the mounting surface. B250-0 kit has Heavy Duty Base Plate with 2-1/2 npt threads and a 2-1/2 to 1-1/4 npt reducer. It is intended to make it convenient for customer to produce a robust mounting base simply by purchasing threaded pipe of the necessary lengths. See page 2 of SPEC PAGE for details. | EL1015-N-B250 | 1,100 (125) | 600 (68) | 14 (6.3) | 36" (915) | 0 inches (B250-0 Kit) | NONE |
| EL1025-N | The same Extra Heavy Duty Parallel Rack as EL1015 but with our largest float cylinder and balance controls added for 25 lb (11.4 Kg) tooling weight capacity. B250-0 kit has Heavy Duty Base Plate with 2-1/2 npt threads and a 2-1/2 to 1-1/4 npt reducer. It is intended to make it convenient for customer to produce a robust mounting base simply by purchasing threaded pipe of the necessary lengths. See page 2 of SPEC PAGE for details. | EL1025-N | 1,100 (125) | 600 (68) | 25 (11.4) | 36" (915) | 0 inches (B250-0 Kit) | NONE |
